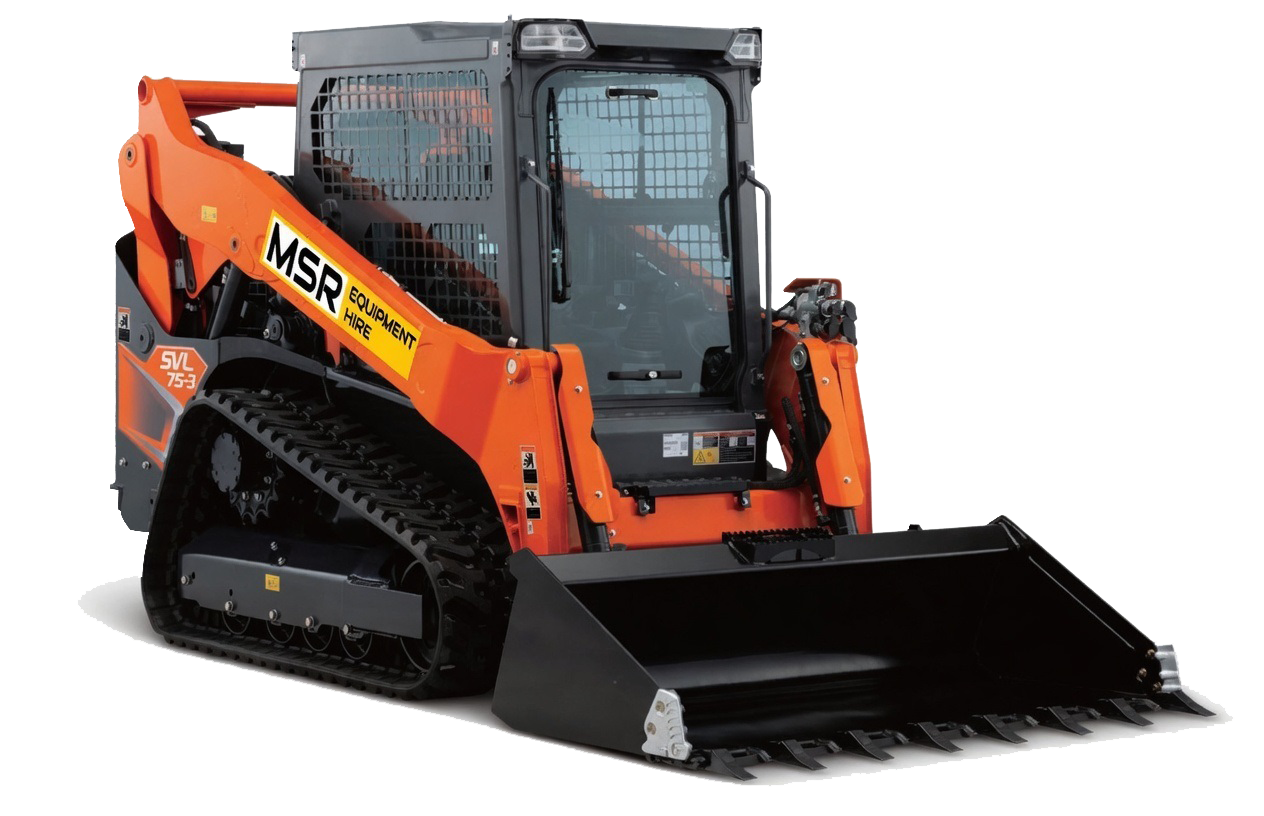

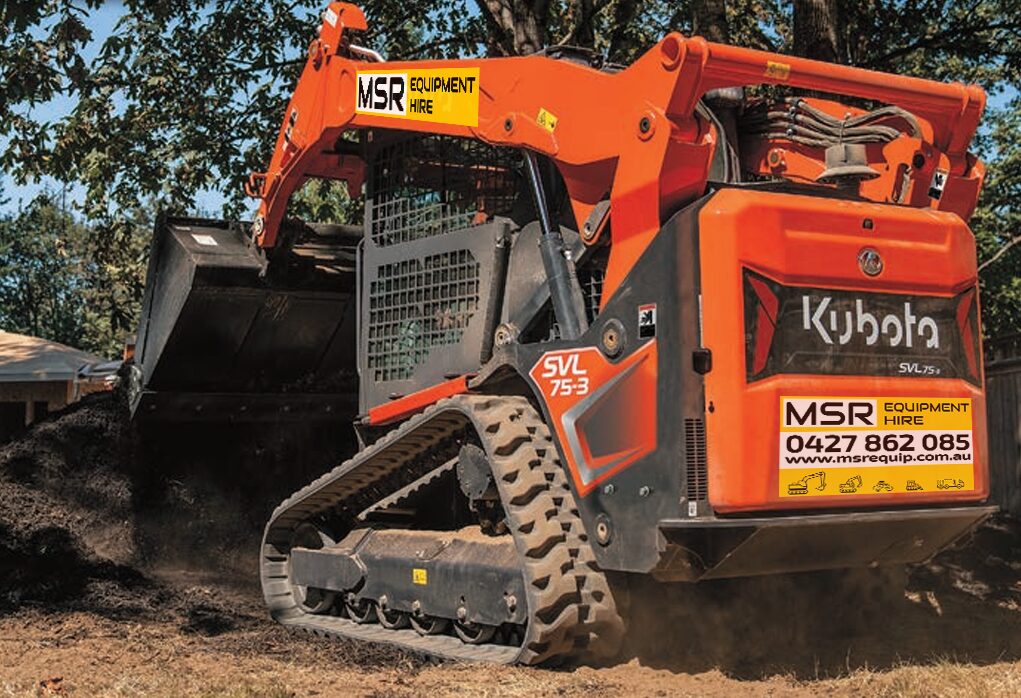

Bobcat Kubota SVL75-3 Track Loader
74.3HP | VERTICAL LIFT | PRESSURISED CABIN | HIGH-FLOW HYDRAULICS
The Kubota SVL75-3 is the latest generation compact track loader from Kubota, replacing the highly regarded SVL75-2 with a comprehensive suite of upgrades across performance, comfort, technology, and versatility. Powered by a Kubota V3307-TE5A-CTL-Q four-cylinder diesel engine producing 74.3HP gross at 2,400rpm, the SVL75-3 delivers exceptional pushing, lifting, and digging capability while remaining compact and manoeuvrable across a wide range of job sites throughout Melbourne and regional Victoria.

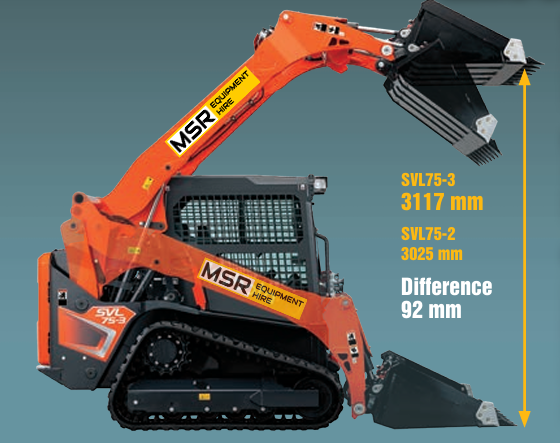

With a rated operating capacity of 1,129kg (35% tipping load) and a full tipping load of 3,226kg, the SVL75-3 moves serious material efficiently. The vertical lift arm path maximises reach and dump height, making loading trucks and hoppers faster and more precise. Breakout force of 2,808kg on the bucket and 2,142kg on the lift arm ensures the machine handles compacted soil, gravel, and heavy materials without hesitation.
One-Piece Pressurised Sealed Cabin
One of the most significant upgrades in the SVL75-3 is the fully sealed one-piece pressurised cabin. Designed to keep dirt, dust, water, and debris completely out of the operator environment, the cab maintains a clean, comfortable workspace even on the most demanding sites. Six strategically placed air vents distribute heating and air conditioning evenly throughout the cabin, maintaining optimal temperature all year round. The wide entrance, ergonomically positioned controls, and Kubota’s well-known front sliding window make entering, exiting, and operating the machine intuitive and fatigue-free.
7″ LCD Touchscreen with Keyless Start & Reverse Camera
The SVL75-3 features a large 7-inch colour LCD touchscreen with jog dial control, providing the operator with full visibility of machine functions, settings, and diagnostics at a glance. Keyless start adds a layer of security and convenience, while the integrated reverse camera significantly improves site safety by eliminating rear blind spots. These technology upgrades make the SVL75-3 one of the most operator-friendly compact track loaders available for hire in Melbourne.
Advanced Hydraulic System
The SVL75-3 offers both standard and high-flow hydraulic configurations. Standard auxiliary hydraulic flow of 72.7 L/min supports a wide range of attachments, while the high-flow option delivers up to 112.8 L/min for demanding implements such as cold planers, high-torque augers, and mulching heads. Loader hydraulic pressure of 224 kgf/cm² provides powerful, smooth, and responsive performance when operating buckets, forks, and specialty attachments from Kubota’s SSV and SVL performance-matched attachment range.
Updated Engine & Top-Mount Layout
The SVL75-3 features a redesigned engine layout with top-mounted service access, making daily checks and routine maintenance faster and safer without requiring access from underneath the machine. The Tier 4 / Stage 5 compliant diesel engine delivers higher torque than its predecessor, improving ramp climbing, pushing performance, and productivity under full load. With a 94.6-litre fuel tank, the SVL75-3 is built for long operating days without frequent refuelling stops.
Compact Track Undercarriage
The SVL75-3 runs on rubber tracks available in standard 320mm or wide 400mm configurations, providing excellent traction across loose, wet, and uneven terrain. Ground pressure with standard tracks measures 5.9 psi, dropping to 4.8 psi with wide tracks — significantly reducing ground disturbance compared to wheeled alternatives. The four-roller undercarriage per side and 1,436mm track ground contact length deliver outstanding stability and traction force of 4,390kg. Travel speeds of 9 km/h (low) and 13.7 km/h (high) allow efficient movement across large sites.
Wide Range of Compatible Attachments
The SVL75-3 is compatible with Kubota’s full range of performance-matched SSV and SVL attachments including trenchers, skid graders, skid cutters, powered rakes, box blades, auger drives, pallet forks, cold planers, hopper brooms, loader booms, and 6-way dozer blades. Whether you need to dig, grade, trench, lift, or clear, the SVL75-3 provides a single machine solution for multiple tasks on the same site.
